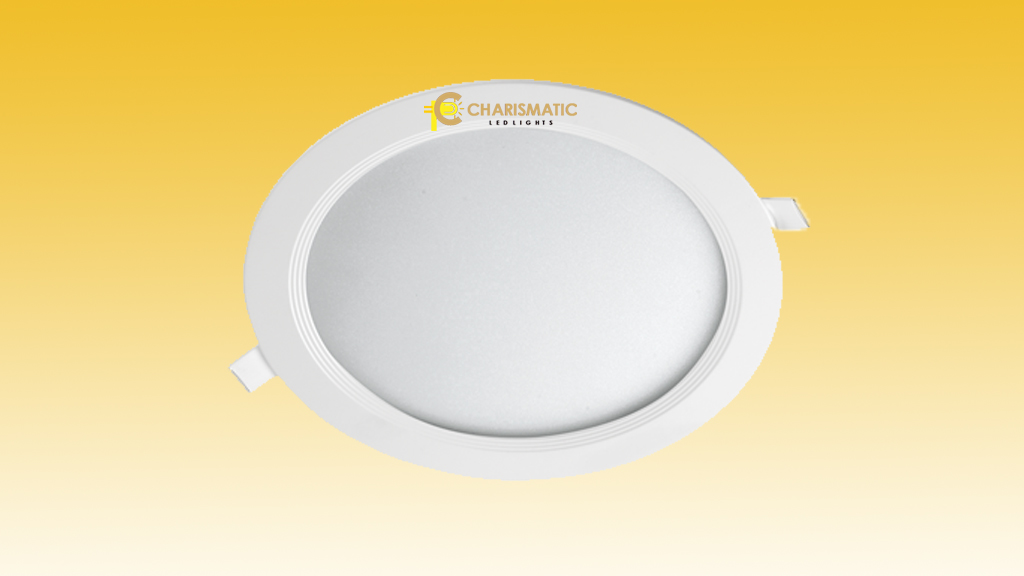

Recess Mounting Round Panel
We Charismatic Electricals Pvt. Ltd. are leading manufacturer, supplier, dealers and Distributors of LED Lights. distributors of Recess Mounting Round / Square Panel in Pune | Charismatic Electricals Pvt. Ltd. Pune Maharashtra India.
Technical Specification
| MODEL NO. | WATTAGE | RATED CCT | CRI | Cutout Size | OD | RATED VOLTAGE |
POWER FACTOR |
MRP |
| CHRMR-3 | 3W | 3000-6000K | >80 | 2.5" | 3.5" | 240VAC | 0.95 | 180 |
| CHRMR-6 | 6W | 3000-6000K | >80 | 4" | 5" | 240VAC | 0.95 | 240 |
| CHRMR-9 | 9W | 3000-6000K | >80 | 4" | 5" | 240VAC | 0.95 | 260 |
| CHRMR-12 | 12W | 3000-6000K | >80 | 6" | 7" | 240VAC | 0.95 | 344 |
| CHRMR-15 | 15W | 3000-6000K | >80 | 6" | 7" | 240VAC | 0.95 | 356 |
| CHRMR-18 | 18W | 3000-6000K | >80 | 8" | 9" | 240VAC | 0.95 | 450 |
| CHRMR-22 | 22W | 3000-6000K | >80 | 8" | 9" | 240VAC | 0.95 | 470 |

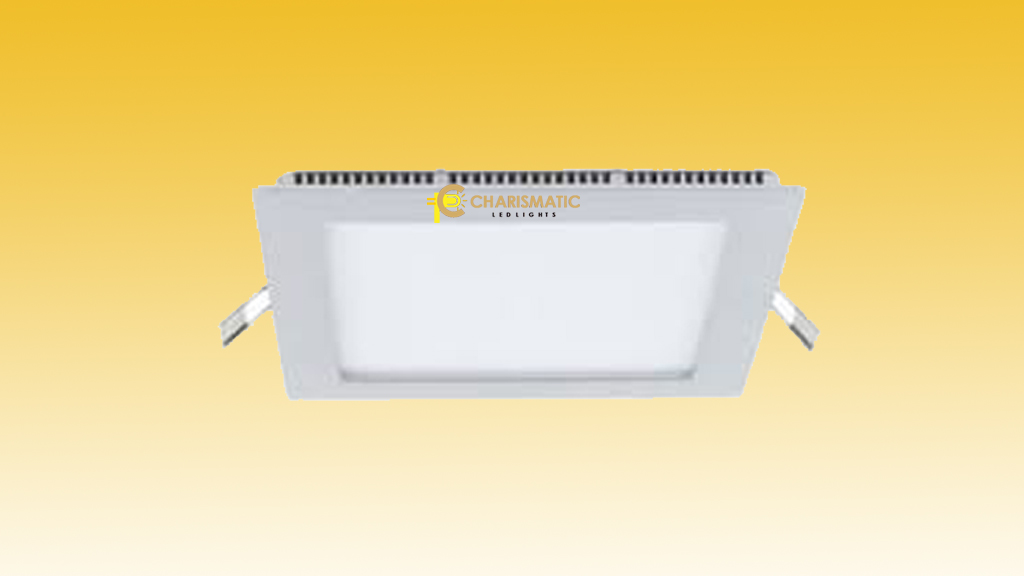

Recess Mounting Square Panel
Technical Specification
| MODEL NO. | WATTAGE | RATED CCT | CRI | Cutout Size | OD | RATED VOLTAGE |
POWER FACTOR |
MRP |
| CHRMR-3 | 3W | 3000-6000K | >80 | 2.5" | 3.5" | 240VAC | 0.95 | 180 |
| CHRMR-6 | 6W | 3000-6000K | >80 | 4" | 5" | 240VAC | 0.95 | 240 |
| CHRMR-9 | 9W | 3000-6000K | >80 | 4" | 5" | 240VAC | 0.95 | 260 |
| CHRMR-12 | 12W | 3000-6000K | >80 | 6" | 7" | 240VAC | 0.95 | 344 |
| CHRMR-15 | 15W | 3000-6000K | >80 | 6" | 7" | 240VAC | 0.95 | 356 |
| CHRMR-18 | 18W | 3000-6000K | >80 | 8" | 9" | 240VAC | 0.95 | 450 |
| CHRMR-22 | 22W | 3000-6000K | >80 | 8" | 9" | 240VAC | 0.95 | 470 |
